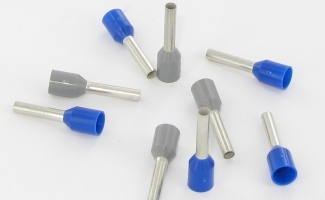

End Sleeves for wires with thick insulation

End Sleeves for wires with thick insulation

DIN 46228 PART GB
Material : copper / polypropylene
Sureface: tin –plated
Min. coat thickess : 3 µm
Max temp : 105°C
Certificate: CSA (Certificate 2110332), Plastic UL listet

Please Click On Your Required Part Number To Order
Cross Section (mm) Length
(mm)		 AWG Color Din Color T Color W Part Number
0.5 8 20

WH

WH
5610
0.5 8 20

OG
5620
0.5 10 20

WH

WH
5628
0.75 8 20

BU
5648
0.75 8 20

GY
5659
0.75 8 20

WH
5671
0.75 10 20

BU
5680
0.75 10 20

GY
5686
0.75 10 20

WH
5692
0.75 12 20

BU
7117
0.75 12 20

GY
5702
0.75 12 20

WH
7119
1.0 8 18

RD

RD
5719
1.0 8 18

YE
5729
1.0 10 18

RD

RD
5739
1.0 10 18

YE
7122
1.0 12 18

RD

RD
5749
1.0 12 18

YE
5753
1.5 6 16

BK

BK
7128
1.5 6 16

RD
7130
1.5 8 16

BK

BK
5766
1.5 8 16

RD
5778
1.5 10 16

BK

BK
5792
1.5 10 16

RD
7134
2.5 8 14

GY
5812
2.5 8 14

BU

BU
5822
2.5 10 14

GY
5832
2.5 10 14

BU

BU
7137
2.5 12 14

GY
5838
2.5 12 14

BU

BU
7140
30 Products found. Page 1 of 1
Sort By:
Items per page:
005610
005610
0.5mm x 8mm White Ferrules A00552GB / A00555GB / 005610
005620
005620
0.5mm x 8mm Orange Ferrules A00557GB / 005620
005628
005628
0.5mm x 10mm White Ferrules A00575GB / A00572GB / 005628
005648
005648
0.75mm x 8mm Blue Ferrules A00752GB / 005648
005659
005659
0.75mm x 8mm Grey Ferrules A00755GB / 005659
005671
005671
0.75mm x 8mm white Ferrules A00757GB / 005671
005680
005680
0.75mm x 10mm Blue Ferrules A00772GB / 005680
005686
005686
0.75mm x 10mm Grey Ferrules A00775GB / 005686
005692
005692
0.75mm x 10mm White Ferrules A00777GB / 005692
007117
007117
0.75mm x 12mm Blue Ferrules A00782GB / 007117
005702
005702
0.75mm x 12mm Grey Ferrules A00785GB / 005702
007119
007119
0.75mm x 12mm White Ferrules A00787GB / 007119
005719
005719
1.0mm x 8mm Red Ferrules A01052GB / A01055GB / 005719
005729
005729
1.0mm x 8mm Yellow Ferrules A01057GB / 005729
005739
005739
1.0mm x 10mm Red Ferrules A01072GB / A01075GB / 005739
007122
007122
1.0mm x 10mm Yellow Ferrules A01077GB / 007122
005749
005749
1.0mm x 12mm Red Ferrules A01082GB / A01085GB / 005749
005753
005753
1.0mm x 12mm Yellow Ferrules A01087GB / 005753
007128
007128
1.5mm x 6mm Black Ferrules A01532GB / A01535GB / 007128
007130
007130
1.5mm x 6mm Red Ferrules A01537GB / 007130
005766
005766
1.5mm x 8mm Black Ferrules A01552GB / A01555GB / 005766
005778
005778
1.5mm x 8mm Red Ferrules A01557GB / 005778
005792
005792
1.5mm x 10mm Black Ferrules A01572GB / A01575GB / 005792
007134
007134
1.5mm x 10mm Red Ferrules A01577GB / 007134
005812
005812
2.5mm x 8mm Grey Ferrules A02552GB / 005812
005822
005822
2.5mm x 8mm Blue Ferrules A02555GB / A02557GB / 005822
005832
005832
2.5mm x 10mm Grey Ferrules A02562GB / 005832
007137
007137
2.5mm x 10mm Blue Ferrules A02565GB / A02567GB / 007137
005838
005838
2.5mm x 12mm Grey Ferrules A02572GB / 005838
007140
007140
2.5mm x 12mm Blue Ferrules A02575GB / A02577GB / 007140
