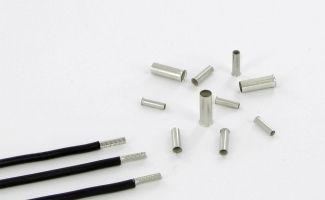

End Sleeves unInsulated

End Sleeves unInsulated

DIN 46228 PART 4

Material: Copper, Surface: Tin Plated. For wires from 0.14 – 150 mm² (AWG 26 – 300 MCM).
Tolerances according to DIN 46228 part 4.

Please Click On Your Required Part Number To Order
Cross Section (mm) Length
(mm)
AWG Color Din Color T Color W Part Number
0.25 5 24
6825
0.34 7 24
6000
0.34 5 22
6002
0.34 7 22
6004
0.5 6 20
6006
0.5 8 20
6008
0.5 10 20
6010
0.75 6 20
6012
0.75 8 20
6014
0.75 10 20
6015
0.75 12 20
6016
1.0 6 18
6017
1.0 7 18
6019
1.0 8 18
6020
1.0 10 18
6022
1.0 12 18
6024
1.5 7 16
6027
1.5 8 16
6030
1.5 10 16
6031
1.5 12 16
6033
1.5 18 16
6035
1.5 15 16
6035
1.5 20 16
6038
2.5 7 14
6040
2.5 8 14
6042
2.5 10 14
6043
2.5 12 14
6045
2.5 15 14
6047
2.5 18 14
6048
2.5 20 14
6049
4.0 9 12
6050
4.0 10 12
6052
4.0 12 12
6053
4.0 15 12
6055
4.0 18 12
6056
4.0 20 12
6058
6.0 10 10
6059
6.0 12 10
6060
6.0 18 10
6063
6.0 20 10
6065
10 12 8
6068
10 15 8
6070
10 18 8
6071
10 20 8
6073
10 25 8
6074
16 12 6
6079
16 15 6
6080
16 18 6
6081
16 20 6
6083
16 25 6
6084
16 32 6
6085
25 12 4
6089
25 15 4
6091
25 18 4
6092
25 25 4
6094
25 32 4
B25032 / 006095 Uninsulated Ferrules
35 12 2
6096
35 18 2
6098
35 20 2
6099
35 25 2
6100
35 32 2
6101
50 18 1-0
6102
50 22 1-0
6103
50 25 1-0
6104
50 32 1-0
6105
70 25 2-0
6106
70 32 2-0
6108
95 25 3-0
6109
95 30 3-0
6110
95 32 3-0
6111
120 32 250MCM
6075
120 40 250MCM
6076
150 32 300MCM
6077
150 38 300MCM
6078
185 32 350MCM
6086
185 40 350MCM
6087
240 40 500MCM
6088
77 Products found. Page 1 of 3
006825
0.25mm x 5mm Uninsulated Ferrules B00205 / 006825
006000
0.25mm x 7mm Uninsulated Ferrules B00207 / 006000
006002
0.34mm x 5mm Uninsulated Ferrules B00305 / 006002
006004
0.34mm x 7mm Uninsulated Ferrules B00307 / 006004
006006
0.5mm x 6mm Uninsulated Ferrules B00506 / 006006
006008
0.5mm x 8mm Uninsulated Ferrules B00508 / 006008
006010
0.5mm x 10mm Uninsulated Ferrules B00510 / 006010
006012
0.75mm x 6mm Uninsulated Ferrules B00706 / 006012
006014
0.75mm x 8mm Uninsulated Ferrules B00708 / 006014
006015
0.75mm x 10mm Uninsulated Ferrules B00710 / 006015
006016
0.75mm x 12mm Uninsulated Ferrules B00712 / 006016
006017
1.0mm x 6mm Uninsulated Ferrules B01006 / 006017
006019
1.0mm x 7mm Uninsulated Ferrules B01007 / 006019
006020
1.0mm x 8mm Uninsulated Ferrules B01008 / 006020
006022
1.0mm x 10mm Uninsulated Ferrules B01010 / 006022
006024
1.0mm x 12mm Uninsulated Ferrules B01012 / 006024
006027
1.5mm x 7mm Uninsulated Ferrules B01507 / 006027
006030
1.5mm x 8mm Uninsulated Ferrules B01508 / 006030
006031
1.5mm x 10mm Uninsulated Ferrules B01510 / 006031
006033
1.5mm x 12mm Uninsulated Ferrules B01512 / 006033
006035
1.5mm x 18mm Uninsulated Ferrules B01518 / 006036
006035
1.5mm x 15mm Uninsulated Ferrules B01515 / 006035
006038
1.5mm x 20mm Uninsulated Ferrules B01520 / 006038
006040
2.5mm x 7mm Uninsulated Ferrules B02507 / 006040
006042
2.5mm x 8mm Uninsulated Ferrules B02508 / 006042
006043
2.5mm x 10mm Uninsulated Ferrules B02510 / 006043
006045
2.5mm x 12mm Uninsulated Ferrules B02512 / 006045
006047
2.5mm x 15mm Uninsulated Ferrules B02515 / 006047
006048
2.5mm x 18mm Uninsulated Ferrules B02518 / 006048
006049
2.5mm x 20mm Uninsulated Ferrules B02520 / 006049
